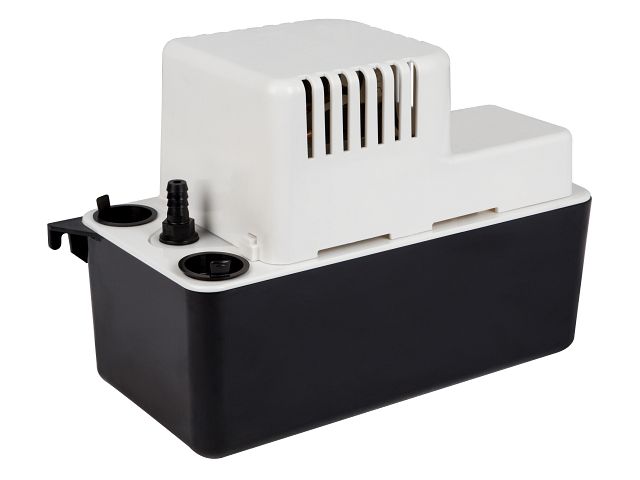

The VCMA-15 Series condensate pump provides a compact, vertical-type pump design with a safety switch and 15′ lift. It features a 6 ft. power cord and a 3/8″ O.D. barbed discharge adapter with built-in check valve. Three 1-1/8-” diameter inlet openings (two fitted with removal cap plugs) allow the condensate pump to be used with multiple types of equipment, including air conditioners and furnace systems.

Capacity           65 gph @ 1′
Shut Off             15′ (4.6 m)
Max. Liquid Temp.       140 °F (60 °C)
Discharge         3/8″ barbed (9.5 mm)
Impeller             Glass-filled Polypropylene
Electrical           115 V, 60 Hz, 1A
Operation         Automatic

Ratings

HP 60Hz – 1/50 hp
Frequency – 60 Hz
Amps – Full Load – 1 A
Full Load Watts – 60 W
Volts – 115 VAC
Cord Length – 6 ft
Continuous Duty–  No

Operation

Maximum Flow Rate – 60Hz 1.08 gpm
Max PSIG – 6.5 PSI
Shut-Off – 15 ft
Maximum Suction Lift – 4.5 Meter
Max Solid Handling Size – 0 “
Safety Switch – Yes
Tank Capacity – 0.5 gal

Materials of Construction

Pump Base Material  – Plastic
Pump Body Material  – Plastic
Impeller Type  – Semi-open
Impeller Material – GF Polypropylene

Installation

Discharge Type – Barb
Discharge – 0.38 “
Suction Type – Screened
Product Length – 11 “
Product Width – 5 “
Product Height – 7 “
Pump Length – 11 “
Product Weight – 4.5 lb
Product Weight w/ Pack – 5 lb
Carton Length – 12 “
Carton Width – 5 “
Carton Height – 7.13 “
Tubing Included – No

Other

Accessories Included – Removable 3/8″ barbed check valve
Minimum Order Quantity – 1
Electrical Agency Approvals – CSA
Standard Warranty – 12 Months
