AHRI# 216051353
Capacity 27K
Indoor IDUMSEPB-09HRFN1-MY5W(GA)*3
Outdoor ODUM3OK-27HFN1-M
Power supply V-Ph-Hz 208/230V,1Ph，60Hz
Power supply Voltage range V 187-253

Cooling (Standard conditions)

Capacity (range) Btu/hr 28000(8000~32800)
Input W 2240(275~3493)
Current A 12.4(2.43~15.55)
EER2 Btu/hr/W 12.5
SEER2 Btu/hr/W 23

Heating (Standard conditions)

Capacity (range) Btu/hr 28000(5000~38500)
Input W 2240(303~4074)
Current A 10.5(2.26~18.08)
COP W/W 3.66
HSPF4 Btu/hr/W 10.6
HSPF5 Btu/hr/W 8.1

MINIMUM CIRCUIT AMPACITY A 25
MAX. FUSE A 40
Outdoor air flow CFM 2147.06
Outdoor noise level dB(A) 63

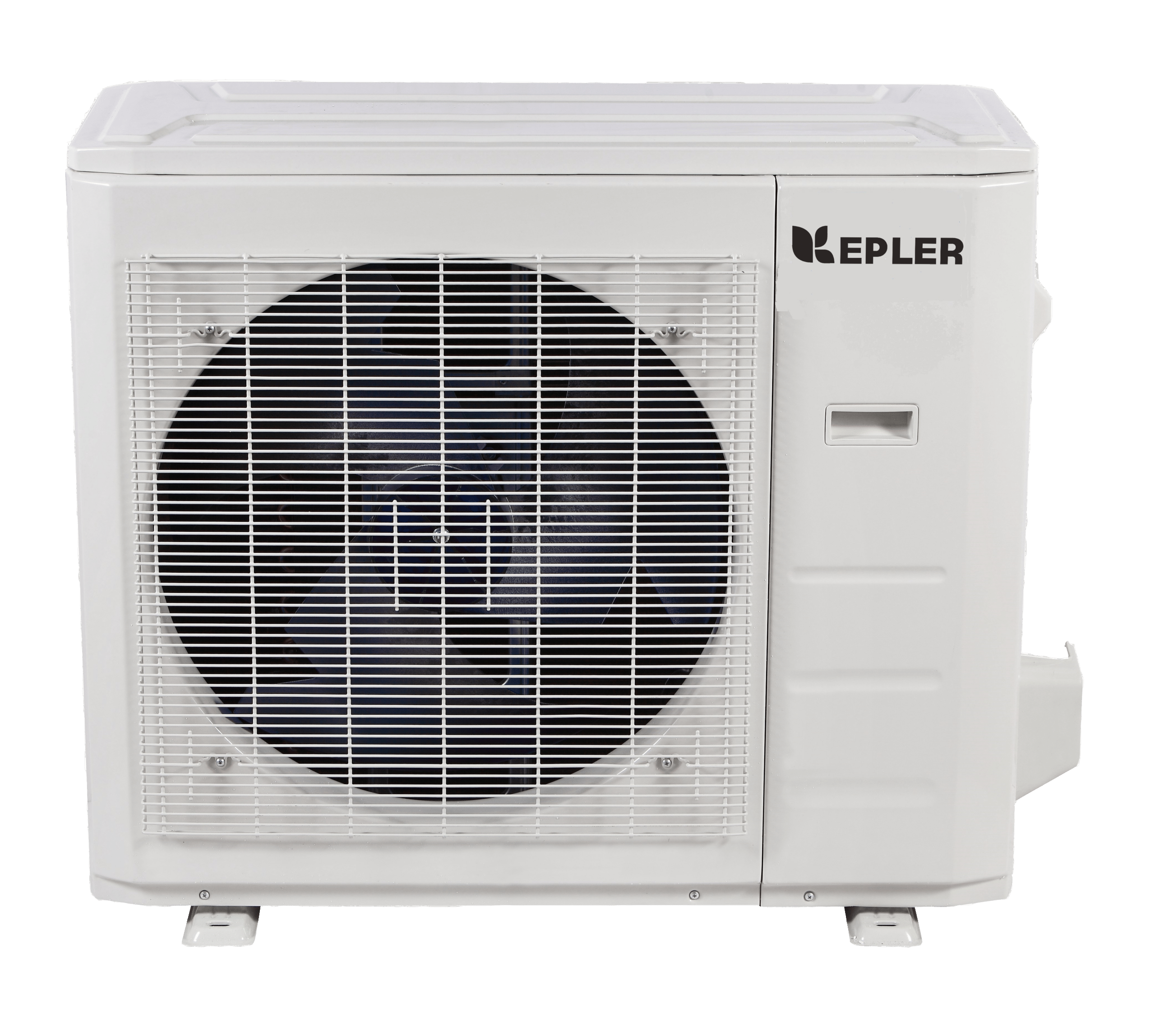

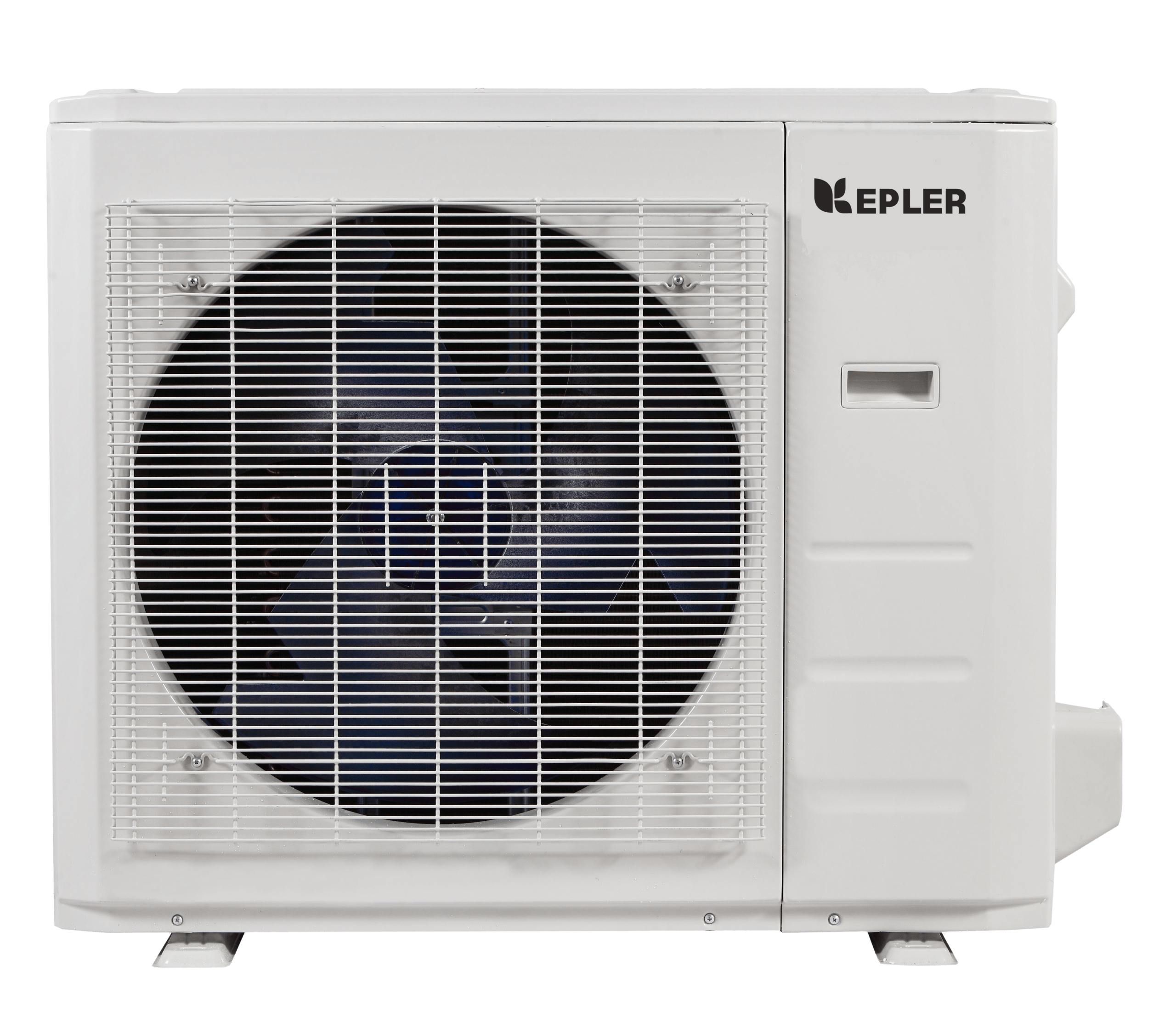

Outdoor unit

Dimension (W*D*H) mm 946x410x810
Dimension (W*D*H) inch 37.24×16.14×31.89
Packing (W*D*H) mm 1090x500x885
Packing (W*D*H) inch 42.91×19.69×34.84
Net/Gross weight kg 76.2/81.5
Net/Gross weight lb 167.99/179.67

Refrigerant type R410A

Minimum Outdoor Heating Temperature

℃ -30
℉ -22
