AHRI# 213062294

Capacity: 24K
Outdoor: AZPNS/24ROD
Power supply (Outdoor): V- Ph-Hz    208/230V,1Ph，60Hz
Cooling (Standard conditions)           Capacity (range)          Btu/hr  24000(9800~28200)
Input W: 2400(380~2990)
Current A: 9.0(1.0~12.0)
EER2    Btu/hr/W:          10.0
SEER2 Btu/hr/W:          15.7
Heating (Standard conditions)
Capacity (range)
Btu/hr  25600(9700~31000)
Input    W: 2246(510~3000)
Current A: 8.5(2.0~12.0)
COP     W/W:   3.34
HSPF4 Btu/hr/W:          9.8
HSPF5 Btu/hr/W:          8.0
Heating(H42) 5F(-15℃)           Rated capacity              Btu/hr  18500
COP     W/W:   2.20
Capability ratio %:      72.27
Throttle type   / TXV for cooling
Indoor unit       Dimension (W*D*H)  mm       445x533x457
Dimension (W*D*H)  inch      17.52×20.98×17.99
Packing (W*D*H)         mm       505x650x490
Packing (W*D*H)         inch      19.88×25.59×19.29
Net/Gross weight        kg           19.4/23.6
Net/Gross weight        lb            42.77/52.03
MINIMUM CIRCUIT AMPACITY (Outdoor):  A19
MAX. FUSE (Outdoor): A30
Outdoor noise level    dB(A)   61.5
Throttle type   /              EEV for heating

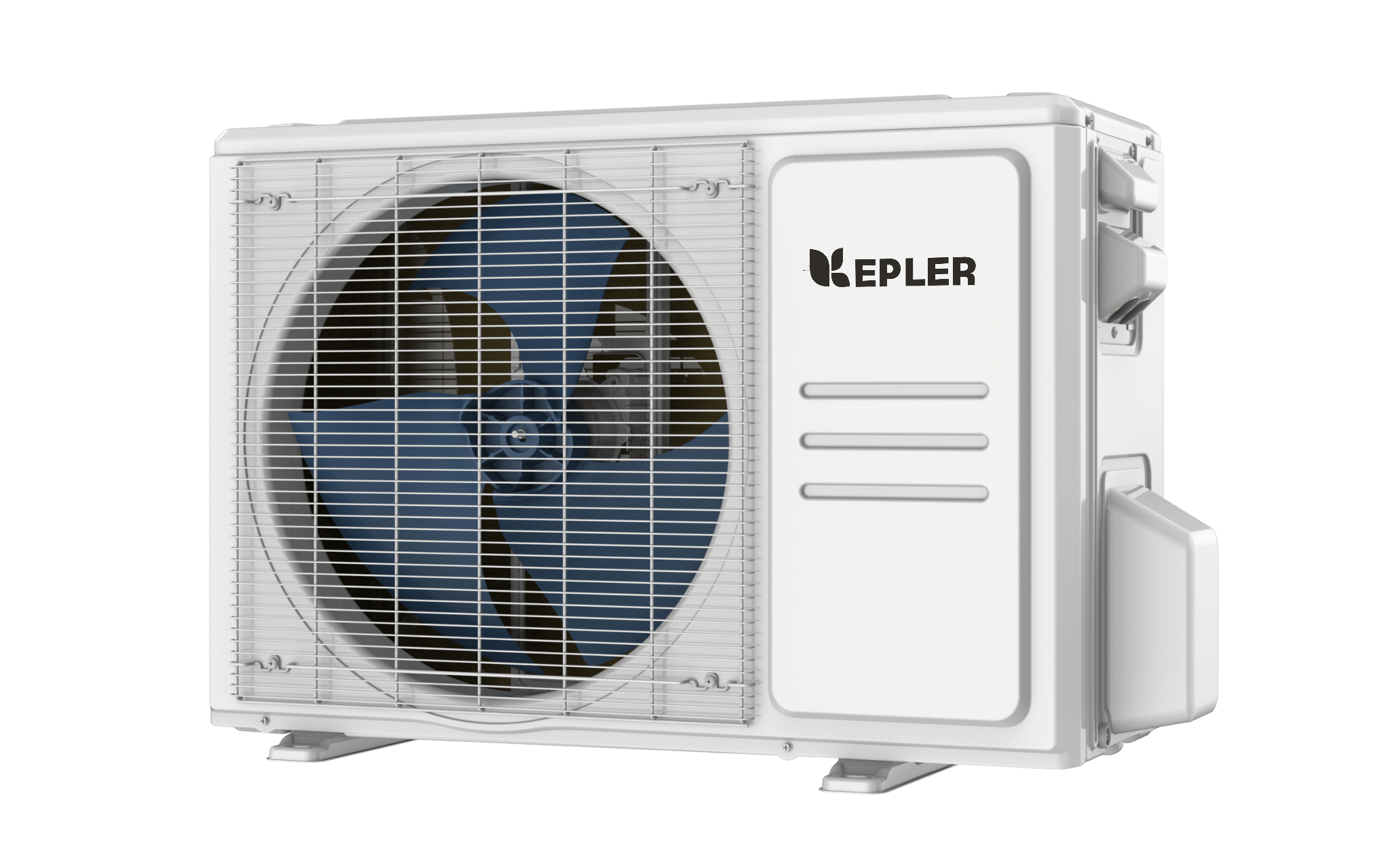

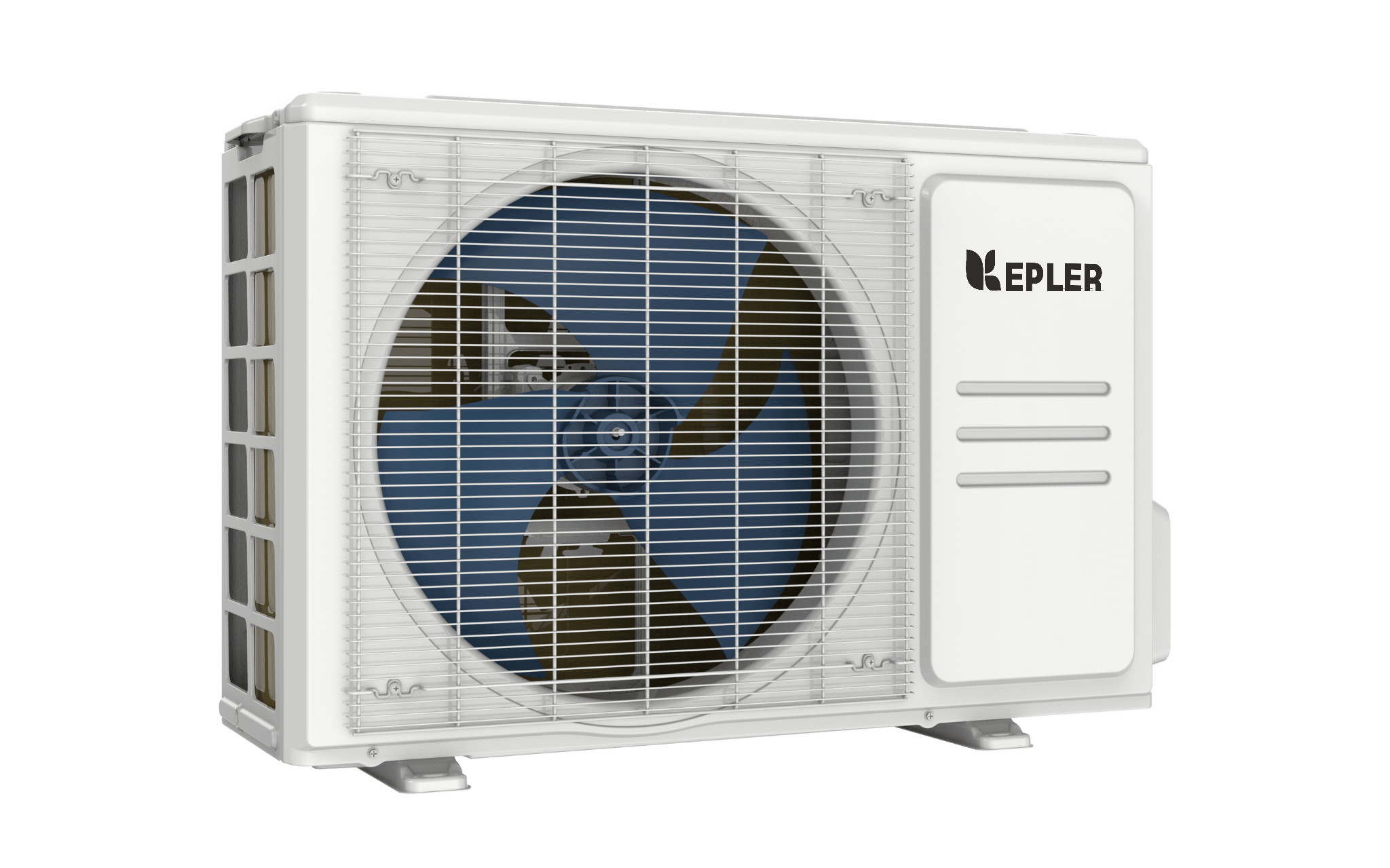

Outdoor unit   Dimension (W*D*H)  mm       890x342x673
Dimension (W*D*H)  inch      35.04×13.46×26.50
Packing (W*D*H)         mm       995x398x740
Packing (W*D*H)         inch      39.17×15.67×29.13
Net/Gross weight        kg           46.4/49.5
Net/Gross weight        lb            102.29/109.13
Refrigerant type                            R410A
