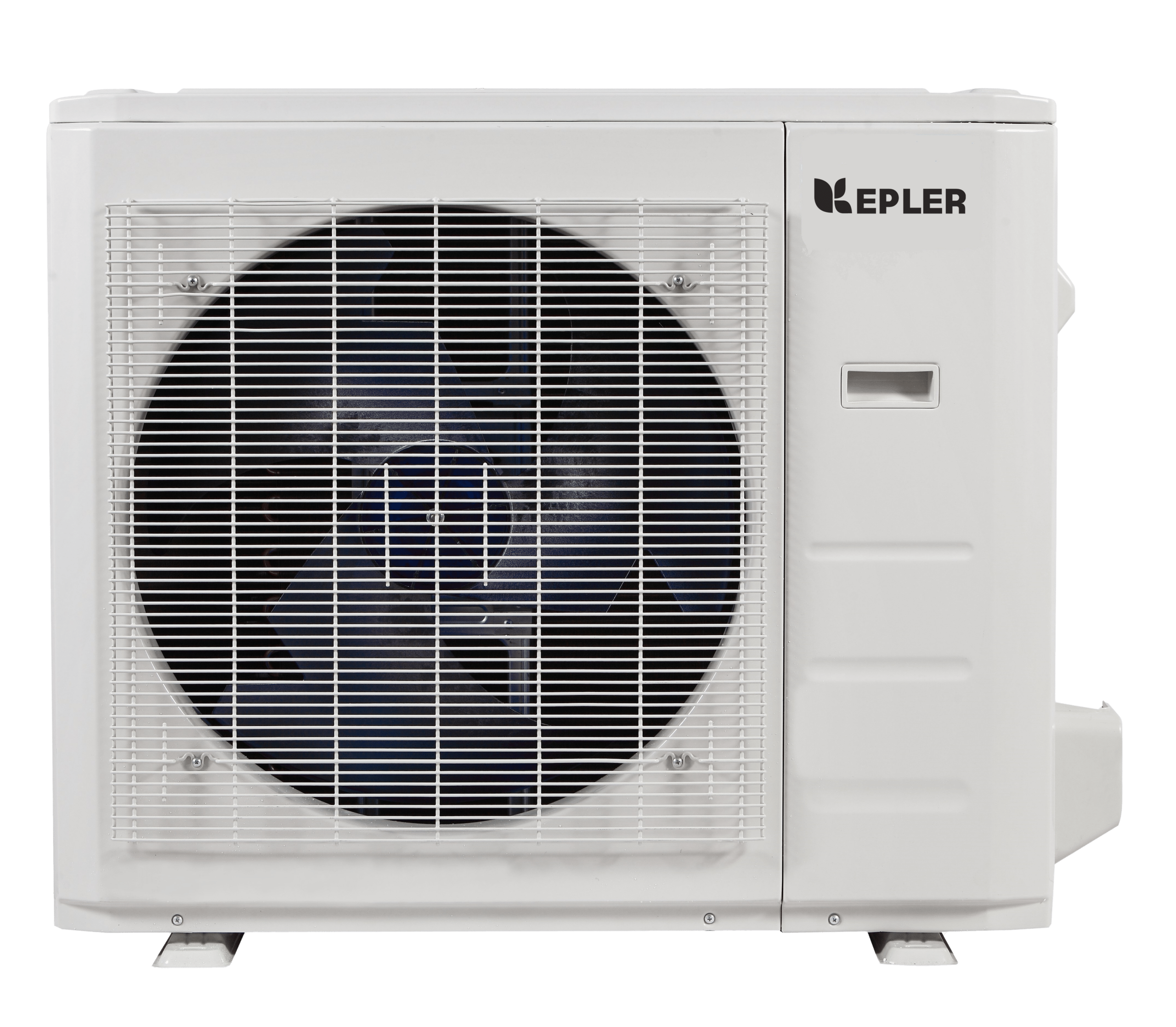

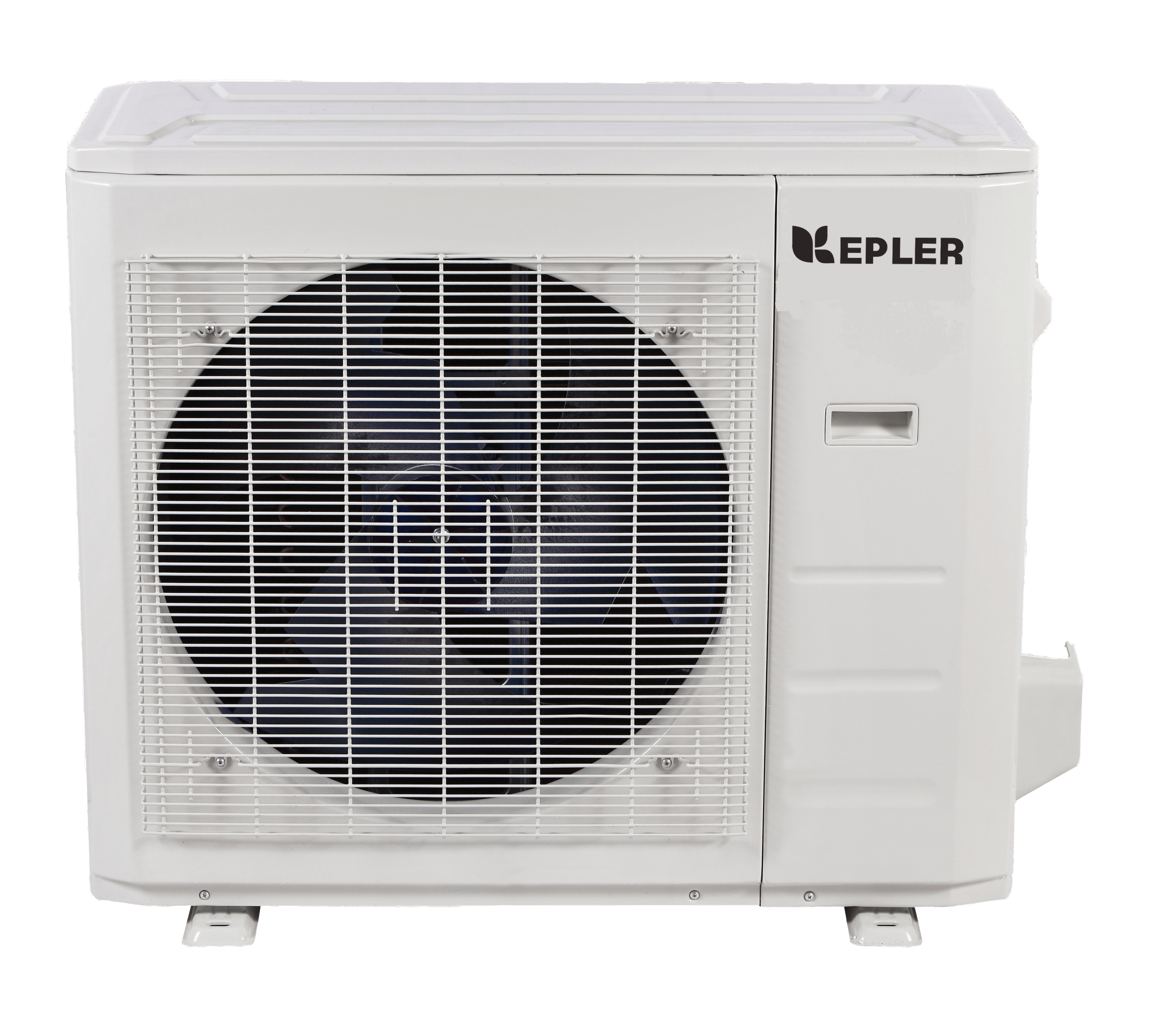

Kepler 21-B, ODUMOD31-36HFN1-MP0W, Up to 21.7 SEER2, Single Zone, Mini-Split Outdoor Condenser, 36K BTU, 208-230V

kepler 21 b, odumod31 36hfn1 mp0w, up to 21.7 seer2, single zone, mini split outdoor condenser, 36k btu, 208 230v
kepler 21 b, odumod31 36hfn1 mp0w, up to 21.7 seer2, single zone, mini split outdoor condenser, 36k btu, 208 230v
, ,

Kepler 21-B, ODUMOD31-36HFN1-MP0W, Up to 21.7 SEER2, Single Zone, Mini-Split Outdoor Condenser, 36K BTU, 208-230V

Kepler 21-B, ODUMOD31-36HFN1-MP0W, Up to 21.7 SEER2, Single Zone, Mini-Split Outdoor Condenser, 36K BTU, 208-230V



The Kepler21b delivers top-tier heating and cooling with an impressive SEER2 rating of up to 21.7 for maximum energy efficiency. Designed for rapid cooling, long airflow distances, and ultra-quiet operation, it ensures year-round comfort. Featuring ECO Mode for up to 60% energy savings and flexible installation options, this HVAC system is the perfect…
SKU: ODUMOD31-36HFN1-MP0W
Product type: Single Zone Heat Pump

Kepler 21-B, ODUMOD31-36HFN1-MP0W, Up to 21.7 SEER2, Single Zone, Mini-Split Outdoor Condenser, 36K BTU, 208-230V



AHRI# 214377766
Capacity 36K
Indoor IDUMSABF-36HRFNX-MQ0W
Outdoor ODUMOD31-36HFN1-MP0W
Power supply V-Ph-Hz 208/230V,1Ph,60Hz
Power supply Voltage range V 187-253

Cooling (Standard conditions)

Capacity (range) Btu/hr 36000(8900~36300)
Input W 4256(250~3620)
Current A 18.4(1.1~15.7)
EER2 Btu/hr/W 8.5
SEER2 Btu/hr/W 17.5

Heating (Standard conditions)

Capacity (range) Btu/hr 36000(11400~37800)
Input W 4270(700~4185)
Current A 18.9(3~18.2)
COP W/W 2.47
HSPF4 Btu/hr/W 8.7
HSPF5 Btu/hr/W 6.8

Moisture removal L/h 4.72
MINIMUM CIRCUIT AMPACITY (Indoor) A 3
MAX. FUSE (Indoor) A 15
Indoor air flow (Turbo/Hi/Mi/Lo) CFM 882.35/732.35/517.65/400.00
Indoor noise level (Hi/Mi/Lo) dB(A) 56.5/54.5/40

Indoor unit

Dimension (W*D*H) mm 1259x282x362
Dimension (W*D*H) inch 49.57×11.10×14.25
Packing (W*D*H) mm 1340x450x385
Packing (W*D*H) inch 52.76×17.72×15.16
Net/Gross weight kg 18.3/23.9
Net/Gross weight lb 40.34/52.69

MINIMUM CIRCUIT AMPACITY (Outdoor) A 28
MAX. FUSE (Outdoor) A 35
Outdoor air flow CFM 2235.29
Outdoor noise level dB(A) 63.5
Throttle type EXV+Capillary

Outdoor unit

Dimension (W*D*H) mm 946x410x810
Dimension (W*D*H) inch 37.24×16.14×31.89
Packing (W*D*H) mm 1090x500x885
Packing (W*D*H) inch 42.91×19.69×34.84
Net/Gross weight kg 68.1/72.1
Net/Gross weight lb 150.13/158.95

Refrigerant type R410A
Connection wiring 14#x4
Thermostat type Remote Control
