AHRI# 213433214

Capacity: 36K
Indoor: AZPN/B36WAC
Outdoor: AZPN/36WD
Power supply (Outdoor): V- Ph-Hz, 208/230V,1Ph，60Hz

Cooling (Standard conditions)

Capacity (range) Btu/hr           35000
Input – W:         /
Current – A:     /
EER2 – Btu/hr/W:          10
SEER2 Btu/hr/W:          15.2

Heating (Standard conditions)

 Capacity (range) – Btu/hr:       36000
Input – W:         /
Current – A:     /
COP – W/W:    /
HSPF4 – Btu/hr/W:      8.5
HSPF5 – Btu/hr/W:      6.6
Throttle type:  TXV

Indoor unit

Dimension (W*D*H)  mm       445x533x599
Dimension (W*D*H)  inch       17.52×20.98×23.58
Packing (W*D*H)         mm       520x665x645
Packing (W*D*H)         inch      20.47×26.18×25.39
Net/Gross weight        kg           27.3/31.3
Net/Gross weight        lb            60.19/69.00
19.56(3.78~26.52)ise level    dB(A)   65

MINIMUM CIRCUIT AMPACITY (Outdoor): 30Amp
Throttle type : EXV

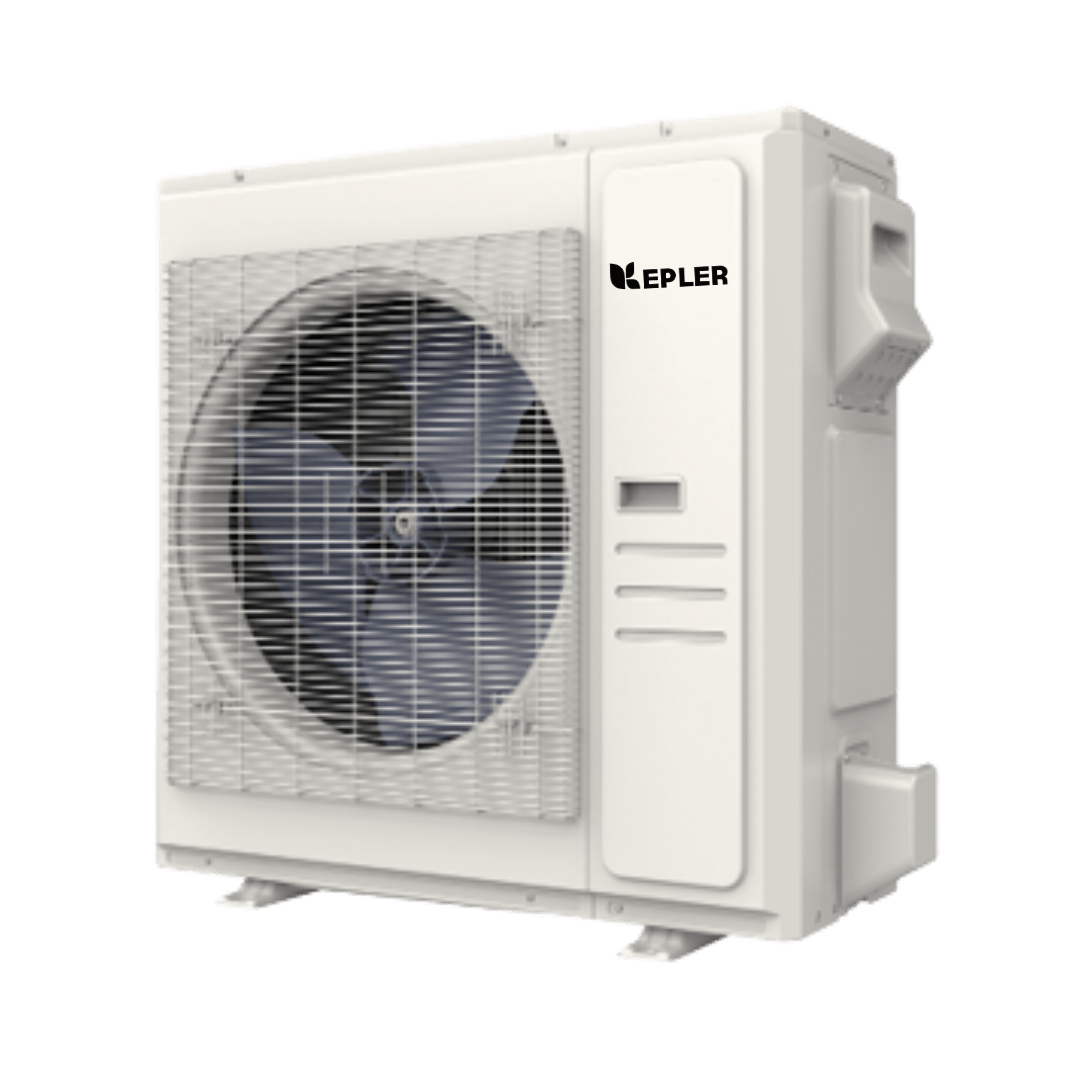

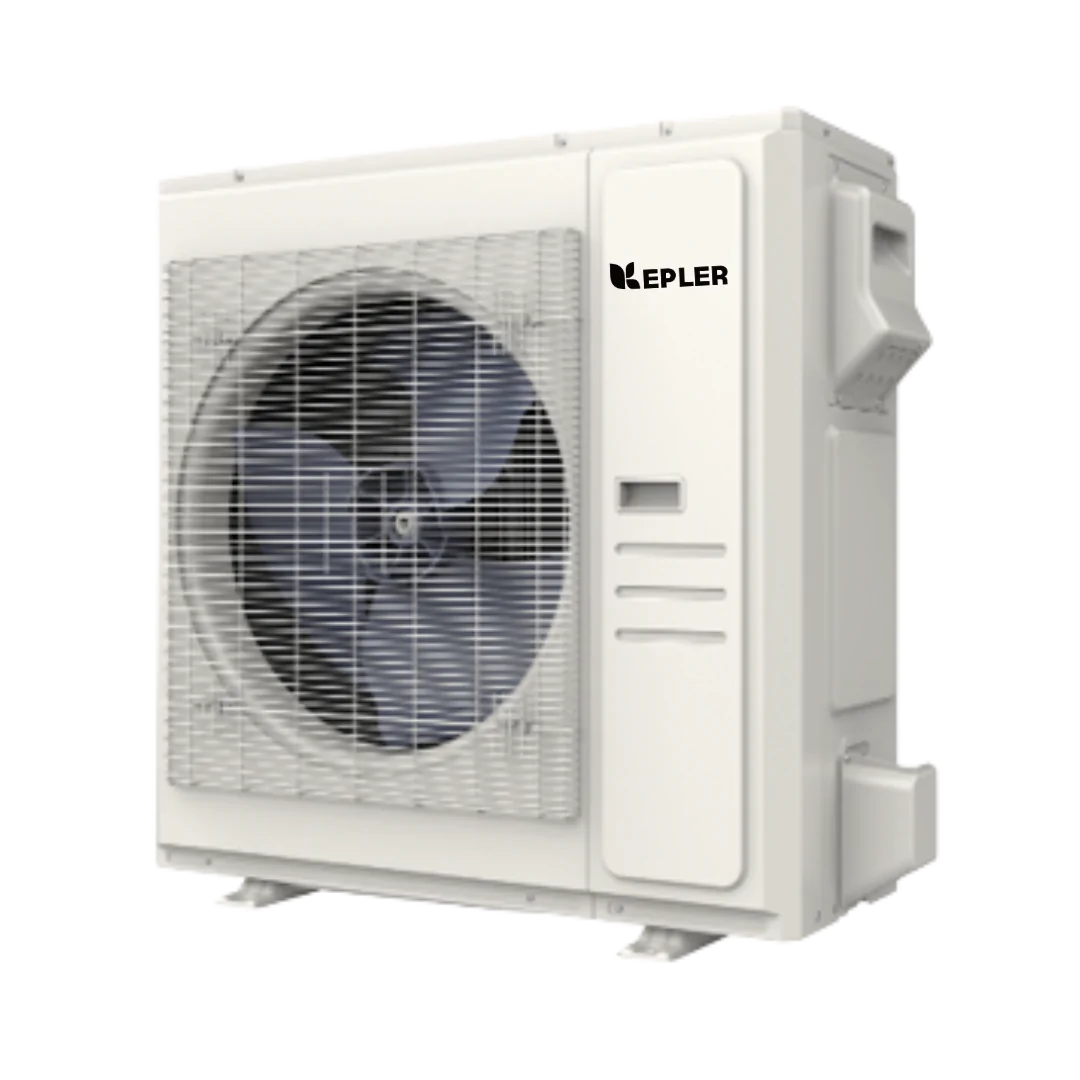

Outdoor unit

Dimension (W*D*H)  mm       980x375x975
Dimension (W*D*H)  inch      38.58×14.76×38.39
Packing (W*D*H)         mm       1145x500x1080
Packing (W*D*H)         inch      45.08×19.69×42.52
Net/Gross weight        kg           92.4/106.4
Net/Gross weight        lb            203.71/234.57
Refrigerant type            R410A
