AHRI# 214568859

Capacity: 45K
Indoor: AZPN/D60WAC
Outdoor: AZPN/45WD
Power supply (Outdoor): V- Ph-Hz, 208/230V,1Ph，60Hz

Cooling (Standard conditions)

Capacity (range) Btu/hr           45000(13400~54000)
Input – W:         4500(870~6100)
Current – A:     19.56(3.78~26.52)
EER2 – Btu/hr/W:          10
SEER2 Btu/hr/W:          15.2

Heating (Standard conditions)

 Capacity (range) – Btu/hr:       55000(10800~60000)
Input – W:         5373(840~6380)
Current – A:     24.60(3.65~27.70)
COP – W/W:  3
HSPF4 – Btu/hr/W:      9.2
HSPF5 – Btu/hr/W:      7.6
Throttle type:  TXV

Indoor unit

Dimension (W*D*H)  mm       622x533x711
Dimension (W*D*H)  inch      24.49×20.98×27.99
Packing (W*D*H)         mm       705x665x770
Packing (W*D*H)         inch      27.76×26.18×30.31
Net/Gross weight        kg           39.3/44.6
Net/Gross weight        lb            86.64/98.33
19.56(3.78~26.52)ise level    dB(A)   62

MINIMUM CIRCUIT AMPACITY (Outdoor): 40Amp
Throttle type : EXV

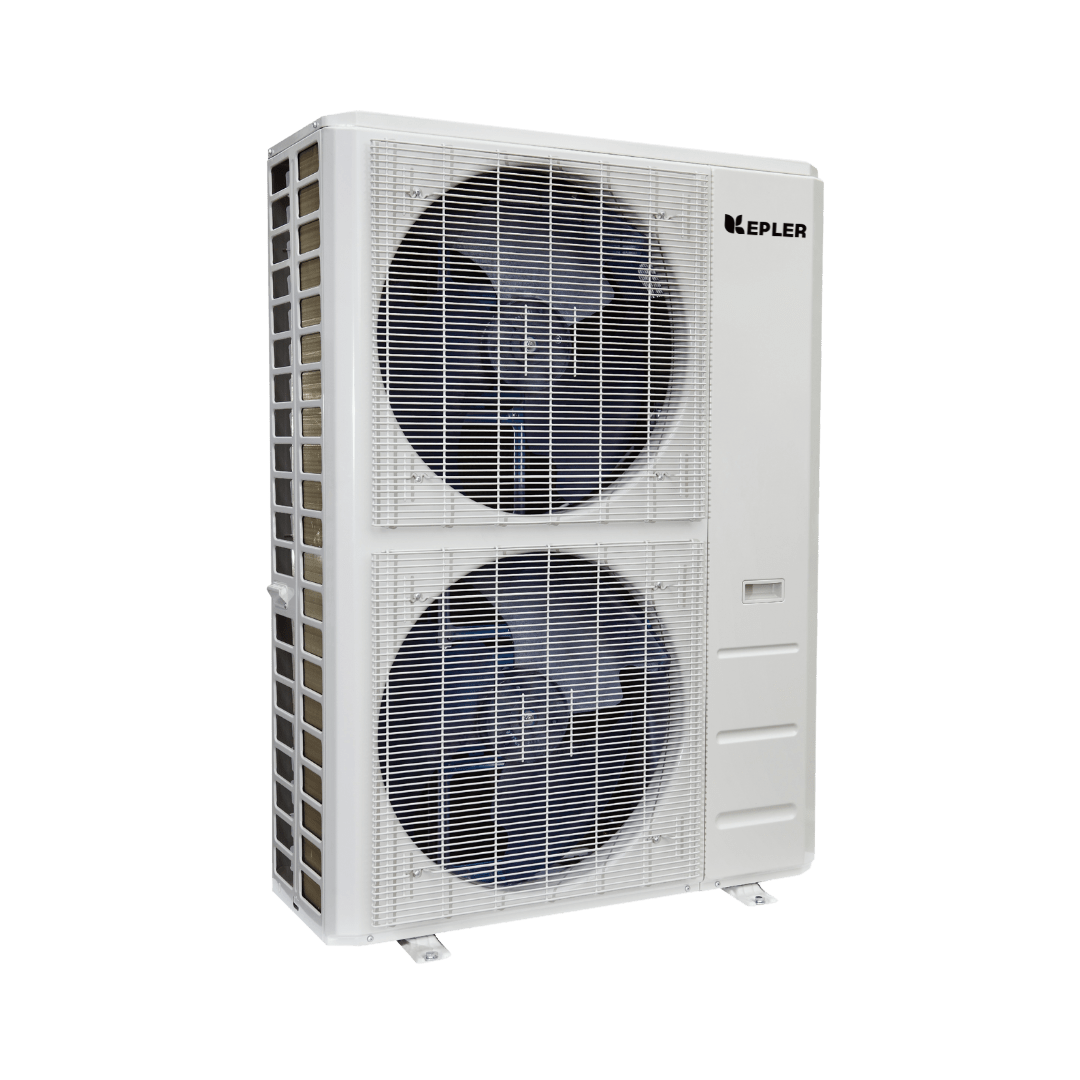

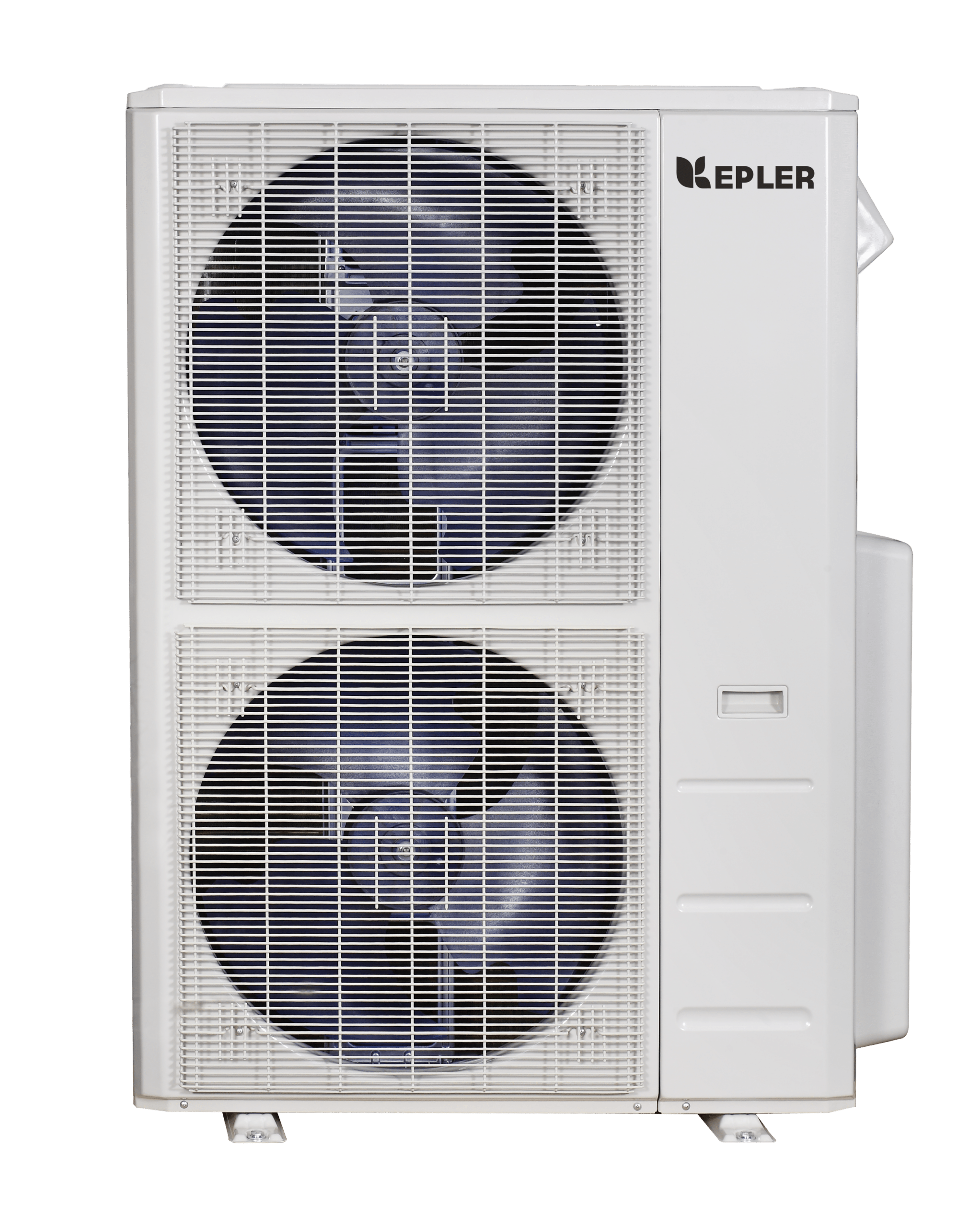

Outdoor unit

Dimension (W*D*H)  mm       952x415x1333
Dimension (W*D*H)  inch      37.48×16.34×52.48
Packing (W*D*H)         mm       1095x495x1480
Packing (W*D*H)         inch      43.11×19.49×58.27
Net/Gross weight        kg           108.8/123.2
Net/Gross weight        lb            239.86/271.61
Refrigerant type            R410A
