AHRI# 213062282

Capacity: 24K
Indoor: AZPN/B24WAC

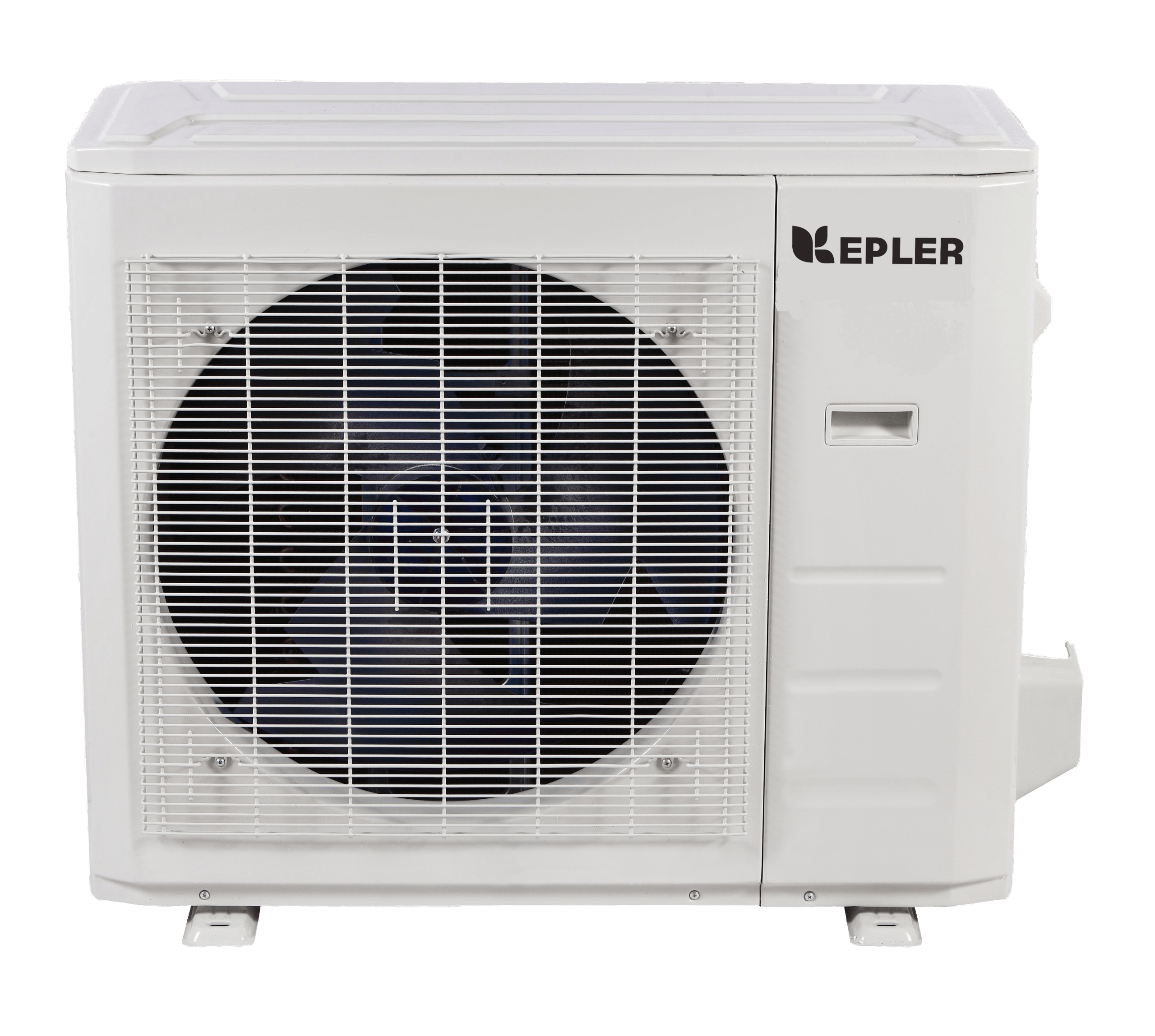

Outdoor: AZPN/24WD
Power supply (Outdoor): V- Ph-Hz, 208/230V,1Ph，60Hz

Cooling (Standard conditions)

Capacity (range) Btu/hr           24000(10000~28400)
Input – W:         2247(380~2600)
Current – A:     9.43(2.33~10.68)
EER2 – Btu/hr/W:          10.7
SEER2 Btu/hr/W:          16.5

Heating (Standard conditions)

 Capacity (range) – Btu/hr:       25000(9600~33400)
Input – W:         2233(510~3160)
Current – A:     9.30(3.01~12.92)
COP – W/W:  3.28
HSPF4 – Btu/hr/W:      9.5
HSPF5 – Btu/hr/W:      7.7
Throttle type:  TXV

Indoor unit

Dimension (W*D*H)  mm       445x533x457
Dimension (W*D*H)  inch       17.52×20.98×17.99
Packing (W*D*H)         mm       520x665x515
Packing (W*D*H)         inch      20.47×26.18×20.28
Net/Gross weight        kg           19.4/23.6
Net/Gross weight        lb            42.77/52.03
19.56(3.78~26.52)ise level    dB(A)   63.5

MINIMUM CIRCUIT AMPACITY (Outdoor): 20Amp
Throttle type : EXV
Outdoor unit

Dimension (W*D*H)  mm       946x410x810
Dimension (W*D*H)  inch      37.24×16.14×31.89
Packing (W*D*H)         mm       1090x500x885
Packing (W*D*H)         inch      42.91×19.69×34.84
Net/Gross weight        kg           62/66
Net/Gross weight        lb            136.69/145.50
Refrigerant type            R410A
