- Southwire Romex SIMpull NMD90 is manufactured using annealed (soft) copper conductors. Compressed stranding for the stranded conductors.
- 90°C rated PVC insulation with a nylon jacket for the individual conductors; a PVC jacket surrounds the overall construction
- Minimum recommended installation temperature is minus 25°C for two-conductor cables and minus 10°C for three-conductor cables. Should be properly stored above 0°C for 24 hours prior to installation.
- The maximum allowable conductor temperature is 90°C.
- Maximum voltage rating for all intended applications is 300V.
- Consult the most recent Canadian Electrical Code (CEC) or a licensed electrician for further information related to applications
- This product is also available to be purchased by the meter in-store, please contact your local Home Depot store for details.

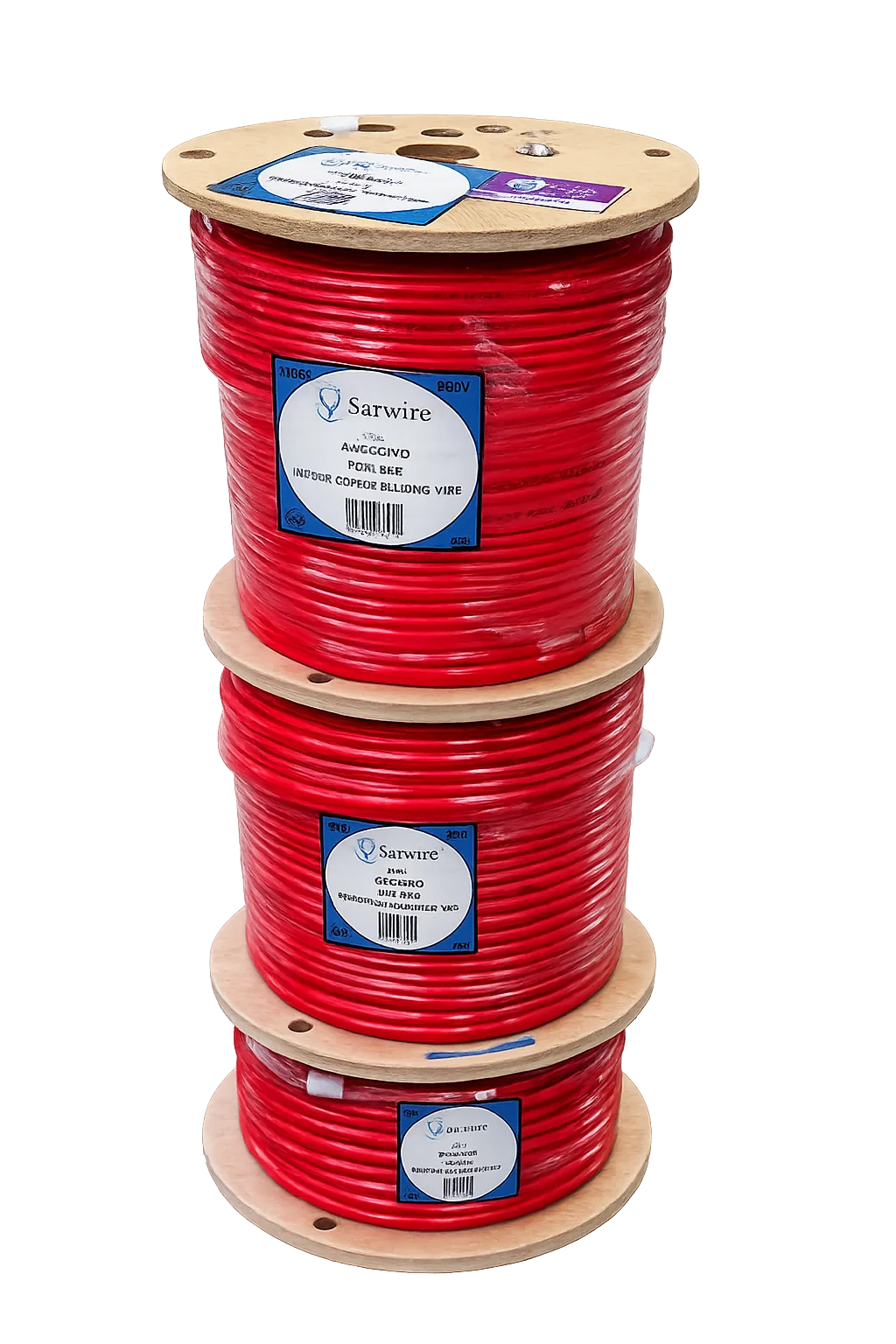

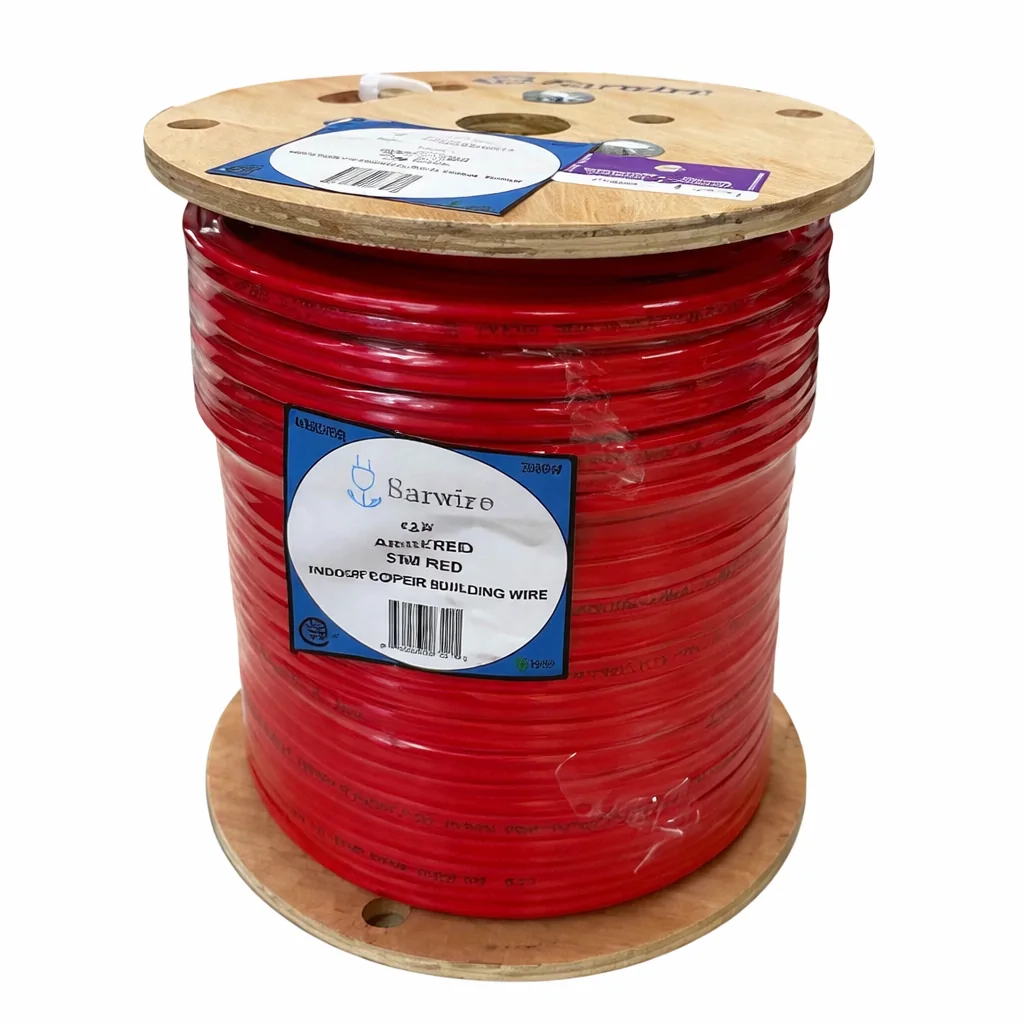

12 RED AWG NMD90 Wire
Accessories, Electrical, High Voltage Wires
12 RED AWG NMD90 Wire
12 RED AWG NMD90 Wire x 75m
12 AWG NMD90 with Freeze Flex includes 2 copper conductors and one ground wire. Superior electrical cable with copper electrical wire for residential electrical wiring projects. In the HVAC it is used for electrical wiring of Air Conditioners units.
NMD90 Nylon
Voltage rating: 300 volts
Maximum conductor temperature: 90 C
Cold temperature rating: -25C
Flame test rating: FT1
Conforms to: CAS Standard C22.2 no. 48
CSA Approval (file) number: LL7319C
Conductor: stranded copper
Insulation: heat resistant PVC
Protective sheath: nylon is extruded over the PVC insulation
Sold by the foot, 246 foot roll (75m)
| Type | "10/2", "12/2" |
|---|
