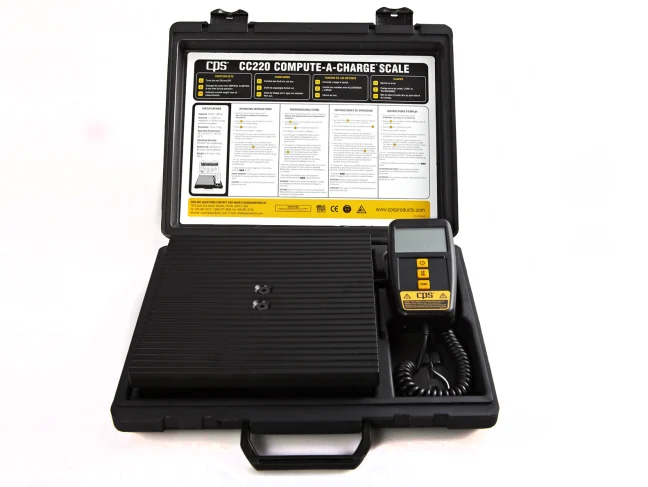

CC220 Scale Compute-a-Charge Refrigerant Scale

The CC220 Refrigerant Scale is an industry-leading charging scale with the most advanced load cell technology.

CC220 High-Capacity Compute-a-Charge^® Scale + Replacement

• 220 lb (100 kg) capacity / 0.25 oz (10 g) resolution
• Our most versatile unit with best-in-class accuracy and enlarged capacity
• Accommodates 30, 50, 90 & 125 lb cylinders
• Removable  8.75˝ platform for operation in or out of the protective case
• Easy to read, fast response measurement
• Visual and mechanical overload protection

CC220 Scale Features

• Unparalleled accuracy, precision, and reliability
• Calibrated to strict NIST (National Institute of Standards & Technology) standards
• Ergonomic hand-held remote controls with large, high contrast wide-angle LCD displays
• Rugged cast aluminum platform and base assemblies for stability and long life
• Electronic and mechanical overload protected to withstand 150% of capacity
• Environmentally sealed and temperature compensated for reliable operation in extreme environments
• Automatic tare upon start up and manual zero function
• Magnetic backing on handheld display for mounting to metal services or 360° swivel hanging hook
• Durable protective transport case enables operation of scale in or out of the enclosure
• Ideal for critical charging of systems large or small and all refrigerant recovery applications
• The widest range of programmable, manual, or wireless/hand-held configurations

CPS Compute-a-Charge scales are in conformity with the following standards or other normative documents

• EN 61326:2006 (Electrical equipment for measurement, control, and laboratory use – EMC Requirements)
• IEC 61000-4-2:2001 (Electrostatic Discharge Immunity Test)
• IEC 61000-4-3:2008 (Radiated, radio-frequency, electromagnetic field immunity test
• Designed and manufactured in the USA with U.S. and globally sourced components
